1sor » Aquaporin-0
3D view in Chime, Jmol or Webmol
Download Coordinates

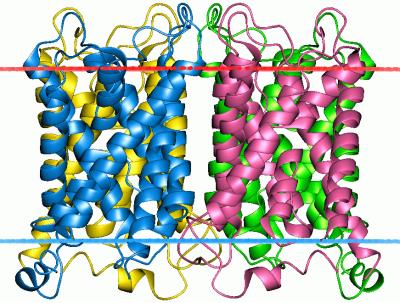

Topology in Eukaryotic plasma membrane
Download Coordinates
Topology in Eukaryotic plasma membrane
 | extracellular side |
| cytoplasmic side |
- Type: 1. Transmembrane (2 classes)
- Class: 1.1. Alpha-helical transmembrane (40 superfamilies)
- Superfamily: 1.1.27. Major Intrinsic Protein (MIP) (1 family) 1.A.8 (TCDB)
- Family: 1.1.27.01. Aquaporin-like (12 proteins) 1.A.8 (TCDB)
- Species: Ovis aries (3 proteins)
- Localization: Eukaryotic plasma membrane (161 proteins)
| 1sor » Aquaporin-0 | |
|---|---|
| Hydrophobic Thickness | 29.0 ± 1.0 Å |
| Tilt Angle | 0 ± 1° |
| ΔGtransfer | -153.8 kcal/mol |
| Links to 1sor | PDB Sum, SCOP, MSD, OCA, MMDB, Dali, HSSP |
| Topology | subunit A (N-terminus cytoplasmic) |
| Resolution | 3.00 Å |
| Related PDB Sum entries | 2b6o |
| Number of TM Secondary Structures | 32 |
| 4 transmembrane subunits |
|---|
| A - Tilt: 9° - Segments: 1(9-31), 2(42-62), 3(69-78), 4(83-104), 5(128-149), 6(160-176), 7(185-194), 8(201-223) |
| B - Tilt: 9° - Segments: 1(9-31), 2(42-62), 3(69-78), 4(83-104), 5(128-149), 6(160-176), 7(185-194), 8(201-223) |
| C - Tilt: 9° - Segments: 1(9-31), 2(42-62), 3(69-78), 4(83-104), 5(128-149), 6(160-176), 7(185-194), 8(201-223) |
| F - Tilt: 9° - Segments: 1(9-31), 2(42-62), 3(69-78), 4(83-104), 5(128-149), 6(160-176), 7(185-194), 8(201-223) |
